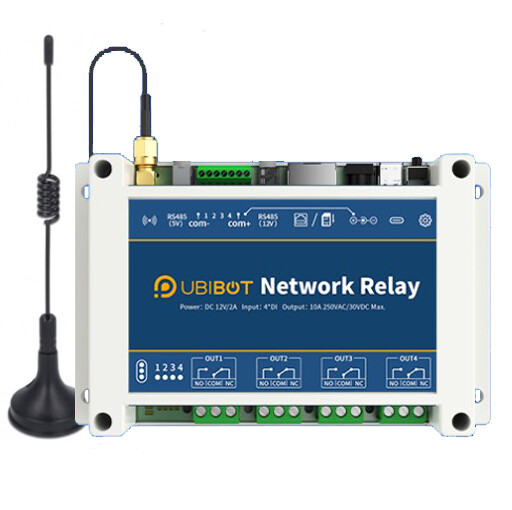

4 kanals netnærks-relæ datalogger med enten WiFi, SIM eller Ethernet kommunikation.

Name: 4 kanals netnærks-relæ datalogger med enten WiFi, SIM eller Ethernet kommunikation.
SKU: U-B_NR1
Availability: InStock

U-B_NR1. Datalogger med 4-kanals netværksrelæ inkl. 12V strømadapter

881,25 DKK – 1.975,00 DKKInkl. moms

På lager

Model

Ryd

*Model

Reset options
Power adapter for LD1, 12V 2A, EU standard Inkl. moms

Har du brug for hjælp?

Ring til os på 7020 2848
eller send os en mail

Tilbud

Fri fragt på ordrer
over 499 DKK

30 dages returret

40 års erfaring

Godkendt af fødevarestyrelsen

Smileyordning

Beskrivelse

Enjoy the Benefits of Remote Cotrollable Relays

Support 4-channel relay independent outputs, which can be remotely synchronized as a whole or independently controlled at a single point. Experience a contact capacity of 250V AC/10A or 30V DC/10A, and a service life up to 100,000 times to meet external load requirements and use scenarios.

nr1-long-distance

Intelligent Control | Various Modes

Network Relay NR1 can be used in online or offline while supporting a variety of control modes to fully realize your intelligent control needs.

nr1-long-distance

Online Control

Control the four-way switch of the relays via the UbiBot^® cloud platform and take advantage of relays that can be executed immediately.

Time-task nr1-long-distance

Time Task

In addition to setting up various time tasks such as the timer, cycle, delay, etc., through the UbiBot^® Cloud Platform, the relay can be automatically controlled to turn on and off according to time.

Local-linkage nr1-long-distance

Local Linkage

In conjunction with smoke sensors, water valves, access control, and other switching inputs, the local device can be connected to perform corresponding switching operations. This allows for the local linkage of all devices.

Off-line-task nr1-long-distance

Offline Control

With the relay supporting Modbus RTU protocol, and in accordance with the communication protocol, users benefit from the linkage control of the relay through the 485 upper computer.

flash

Pulse On/Off

Pulse On: The relay receives the command, turns on for a period of time, and then turn off automatically.
Pulse Off: The relay receives the command, turns off for a period of time, and then turn on automatically.

nr1-long-distance

Automatic Linkage Control

The automation management function creates an exclusive automation system tailored for you. This function links with other devices or external probes within the platform to realize all-weather, multi-directional site monitoring, helping you grasp the overall situation in real-time.

Safety Interlock | Safety Control

The network relays support user-defined safety interlock groups. Any one relay in the group is open while the other relays are disconnected. The safety interlock effectively prevents external devices controlled by the relay from working simultaneously, thus avoiding potential dangers. It can be applied to the protection of fans, rolling shutters, and other motors in forward and reverse motion.

nr1-security-control

Freely Selectable Modbus Master/Slave Mode

Able to support RS485 serial communication, master/slave mode can be selected freely. The slave mode is for default, which can be queried or controlled by the RS485 host. After switching to the host mode, it can be connected with RS485 probes to expand the product functions and realize the integration of monitoring and control.

nr1-slave-mode

Default Power-Up State Setting

The relay output state after repowering can be set through the platform end to maintain the disconnection or closure before power failure. This prevents damage to external loads or other property loss after equipment internally reboots or power failure.

Input Wiring

Supports four switch inputs and can be connected to wireless or active switches.

Input-wiring

Output Wiring

Supports normally open or normally closed operations. Various wiring methods can meet different output requirements.

① Low load wiring: Applicable when the non-resistive load current is less than 3A or resistive load is less than 5A.

Output-wiring Output-wiring-bottom

② AC 220V Load Wiring: External load is AC 220V .

Output-wiring2 Output-wiring-bottom

③ AC 380V (with null wire) Load Wiring: External load is AC 380V with null wire.

Output-wiring3

Output-wiring4

Add an AC contactor/intermediate relay between this product and the load in the following four cases.

① Load rated voltage > 30VDC

② Load rated voltage > 250VAC

③ Non-resistive load current > 3A

④ Resistive load current > 5A

Multiple Network Connection Methods

UbiBot^® Network Relay NR1 directly accesses the IoT big data platform through WiFi/4G* /RJ45 network cables*, which can be controlled in real-time on various IoT terminals such as cell phones, tablets, and computers. In addition, the status of the accessed devices should be able to be viewed at any time.

Network-access-mode

Se instruktions-videoen her.

Yderligere info

Se databladet her og / eller Se user-guiden her

Tekniske specifikationer

Contact Capacity	250V AC/10A, 30V DC/10A
Durability	100,000 times
Device Input	4-way DI (optocoupler isolated)
Power Supply	DC 12V/2A
Communication	WiFi 2.4GHz(1-13channels)/4G/RJ45/RS485
Main Material	ABS
Dimension	1459040mm
Working Environment	-20~60℃, 5~85％RH(no condensation)
Certification	CE, RoHS
