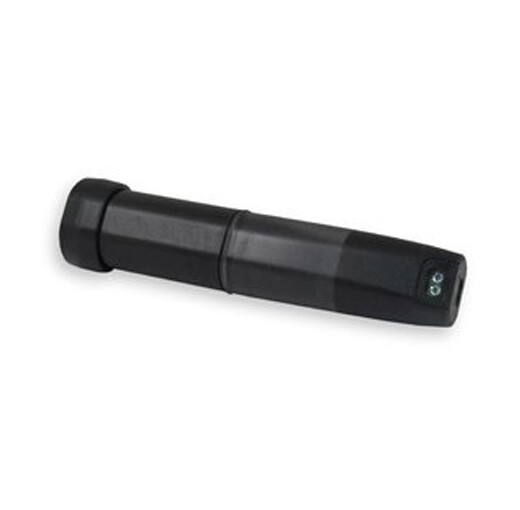

EL-USB-3. USB Data logger with 0-30V dc input

• Voltage USB data logger
• Configuration software
• Selectable
• LEDs indicate logger status
• 32510 reading memory

This data logger measures and stores up to 32510 voltage readings over a 0-30V d.c. measurement range. The user can easily set up the logging rate and start time and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000 XP Vista & 7. The data can then be graphed printed and exported to other applications.

The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by flashing red and green LEDs. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.

The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
