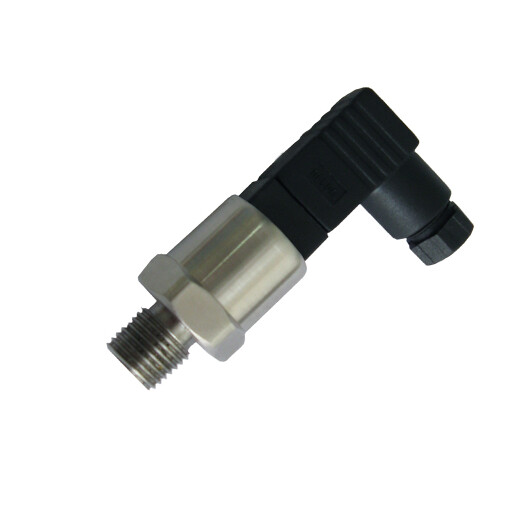

Novus NP430D Tryksensor, 2/5/10/20/30 Bar

NP400D Tryksensor med 4-20 mA output

Fra 700,00 DKK Inkl. moms

På lager

Tryk-variant

Ryd

Har du brug for hjælp?

Ring til os på 7020 2848
eller send os en mail

Tilbud

Fri fragt på ordrer
over 599 DKK

30 dages returret

40 års erfaring

Godkendt af fødevarestyrelsen

Smileyordning

NP430D

The NP430D series of pressure transmitters have been developed for general industrial applications including refrigeration technology.

It can be used with most refrigerant gases and liquids but is NOT compatible with ammonia (NH3).

Product Details

- Pressure Ranges: 0 to 2 Bar 0 to 5 Bar 0 to 10 Bar 0 to 20 Bar and 0 to 30 Bar

- Signal output: two-wire 4-20 mA

- Power supply (V): 12 to 28 Vdc

- Load (RL): RLmax = (V – 12 V) / 20 mA

- Accuracy: better than 1% FS (including linearity hysteresis and repeatability)

- Long-term stability: 0.4 % / FS / year

- Over load: 150 % FS

- Rupture pressure: 300% FS

- Electrical connection: Packard Type

- Protection: IP65

- Weight: 90 g

- Ambient Temperature: -40 to 80 °C

- Process fluid temperature: -40 to 100 °C

- Response time: < 10 ms (0 to 99%)

- Process connection: External thread ¼ “- 18 NPT (basic model)

- Wetted parts: Stainless Steel 1Cr18Ni9Ti Ceramic Diaphragm (Al2O3 – 96%)
- Sealing material: Nitrile NBR O’ring

Yderligere info

Hent databladet her

Tekniske specifikationer
