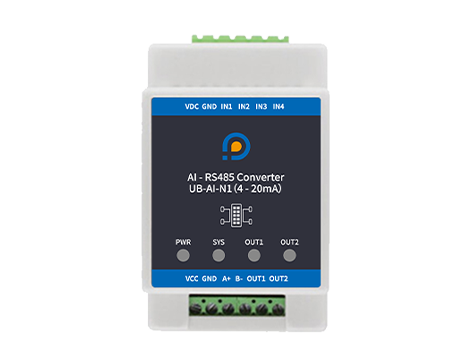

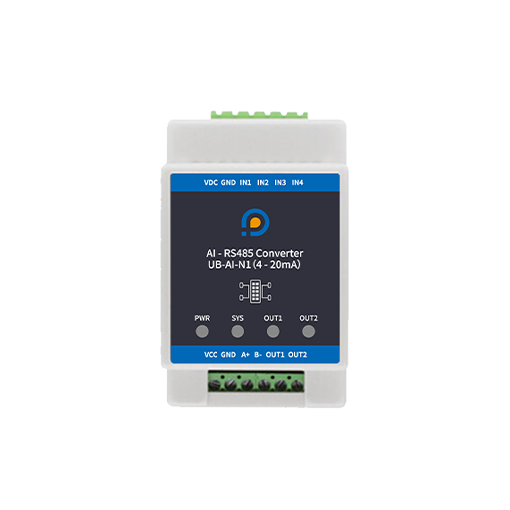

4-20mA analog RS485 Converter for GS1-S serien; 4 kanaler.

Converting 4 ~ 20mA analog inputs to RS485 signals

• Power supply: DC 9 ~ 36V
• Collected signal: Analog Input 4 ~ 20mA
• Number of interfaces: 4 channels single terminal
• AD conversion resolution: 12 bit
• Accuracy: 0.1%
• Communication protocol: RS485 (Modbus protocol)
• Working environment: -40℃ ~ 85℃, 0%RH ~ 95%RH
• Size: 82 × 50 × 32mm
• Cable length: 3m

Introduction:
4~20mA to RS485 converter is an industrial standard analog acquisition
product, small and portable.
It can collect up to four channels 4 to 20mA analog signals, and convert them to the standard ModBus-RTU
communication protocol with RS485 port, so as to be monitored by GS1-S
series devices.
It can also be directly connected to a PLC, industrial control instrument, configuration screen or configuration software.
Acquisition accuracy is 12-bit resolution, 0.1% accuracy.
It can be widely used in industrial sites, distribution cabinets and other places requiring analog signal acquisitions.

Features
* DC9~36VPower supply with anti-reverse connection, over-voltage and over-current protection
* 4 channels of 4 to 20mA current inputs
* 12-bit resolution, 0,1% accuracy
* Supporting Modbus-RTU protocol
* RS485 communication interface with lightning protection and static protection.
