Beskrivelse

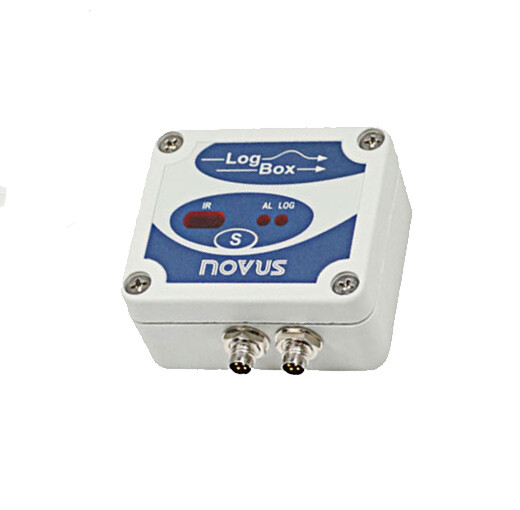

LogBox-AA is a dual channel universal input data logger which directly accepts several analog industrial signals and sensors as voltage current thermocouples and RTDs.
This self-operated logger is extremely flexible and can be easily programmed and set via a handy infrared IrLink3 interface connected to a USB port under Windows® software or with a Palm compatible PDA IrDA interface under PalmOS.
LogChart II software allows for logger configuration recorded data retrieval plotting and historical analysis and exports data to spread sheets.
Details of the optional infrared adaptor can be found here: Novus IR Link 3
Its sturdy water proof enclosure provides full performance in the most demanding applications.
Tekniske specifikationer
- Dual universal multi-sensor inputs individually programmable for Pt100 Thermocouples (types J K T E N R S or B) voltage (0 to 50 mV or 0 to 10 V) or current (0 to 20 mA or 4 to 20 mA)
- Accuracy: 0.2% of full scale for Pt100 current and voltage;
- 0.25% of full scale
- ±3 °C for t/cs type RS and B;
- 0.25% of full scale
- ±1°C for all other thermocouples
- Input resolution: 14 bits
- Launch options: immediate programmed time and date or via Palm
- Stop options: when full at a certain time after a number of readings or wrap around (overwrites first readings)
- Internal button and external signal input for stop/go
- Data acquisitions can be repeated daily
- Memory for 32000 recordings in one channel or 16000 recordings for each channel
- Infrared communication up to 1 meter away
- Recording interval: programmable from 1 s to 18 hours
- Built in real time clock
- Internal replaceable lithium cell (3.6V ½ AA)
- Estimated battery life: 200 days with one weekly download and 5 minutes measuring interval. Battery life depends heavily on data retrieval frequency.
- Switching circuit for powering remote transducers (only in IP65 version)
- Configuration and data retrieval software for Windows® XP Vista 7 and PalmOS
- Operating temperature: -40 °C to 70 °C
- IP65 housing. Optional: IP67
- Dimensions: 70 x 60 x 35 mm
