Beskrivelse

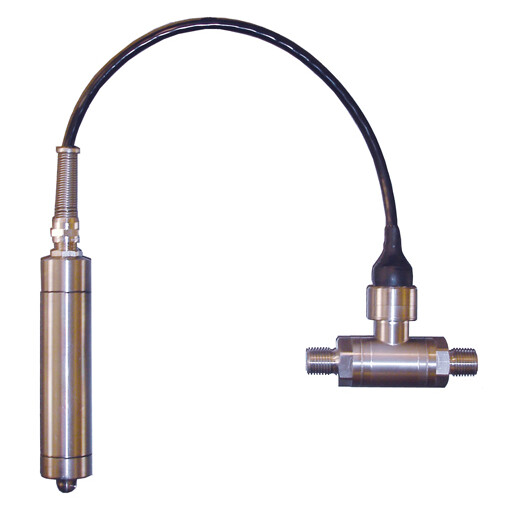

Differential Pressure Temperature Recorder
The PRTemp1000D is a rugged pressure data logger to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments which makes it well suited for use with air conditioning systems chilled water hot water air gas oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature data logger. The logger can be started to take measurements as often as every two seconds up to one reading every twelve hours. It will store up to 16383 readings in its non-volatile memory.
The PRTemp1000D uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a 1/4″ NPT differential fitting.
There are many different pressure ranges available to fit most any application.
Tekniske specifikationer
TEMPERATURE
PRESSURE
GENERAL
Temperature Sensor | Semiconductor |
---|---|
Temperature Range | -20 to 80°C |
Temperature Resolution | 0,1°C |
Temperature Calibrated Accuracy | ±0,5°C |
Pressure Sensor | Semiconductor Strain Gauge |
---|---|
Pressure Range | 0 to 30, 100, 300 or 500 PSID |
Pressure Resolution | 0 to 30: 0,002 0 to 100: 0,005 0 to 300: 0,02 0 to 500: 0,05 |
Pressure Calibrated Accuracy | ±0,25% FSR 0,1% at 25°C typical |
Memory | 16383 pr. channel |
---|---|
Reading Rate | 2 seconds up to 12 hours |
Baud Rate | 2400 |
Battery Life | 1 year |
Material | 303 stainless steel |
Dimensions | 25 x 53,3 x 85 mm |
Submersible | Yes |
Operating Environment | -20~80°C 0~100%RH |
Required Interface Package | IFC200 |
