Rain101A Rainfall Data Logger

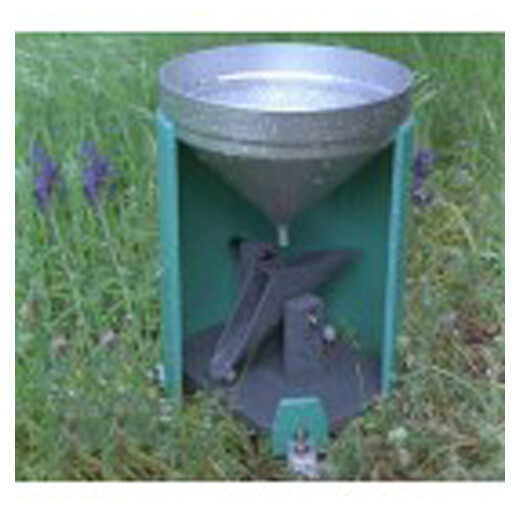

The Rain101A is a complete system to accurately measure and record rainfall over long periods of time. It comes complete with an Event101A data logger weatherproof enclosure tipping bucket rain gauge 20 ft of cable and the IFC200 interface cable and software package.
It can record up to 6 in of rainfall every hour and 131 in of rainfall total. The Rain101A only records to memory when rainfall is present maximizing the amount of time the system can record. Using the logger’s built-in Engineering Units the data can be offloaded and displayed in user-specified units (eg. inches centimeters). The software can “totalize” the rain bucket tips allowing easy viewing of the accumulated rainfall over the time period of interest.
The Rain101A features a 10 year battery life 4 Hz reading rate a multiple start/stop function ultra-high speed download capability 406323 reading storage capacity optional memory wrap battery life indicator optional password protection and more.
RAINFALL Specifications:
| Rainfall Accuracy | ±4 % over range of 1 in to 6 in per hour |
| Orfice | Ø204 mm |
| Reed Switch Contact rating | 3 W 28 VAC |
| Rainfall per Bucket Tip | (3) 1/4 in dia. holes on 9.5 in dia. circle |
| Rainfall Tripod/Mast Kit | Contact factory for availability |
GENERAL Specifications:
| Memory | 406323 samples 338 ft of rainfal |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115.200 |
| Push-Button Start | Yes |
| Battery Life | 10 years Typical |
| Material | Funnel: anodized aluminum; base body and bracket Tipping Bucket: PVC Data Logger: ABS Plastic |
| Dimensions | Rain Gauge: 305 mm x Ø214 mm Weatherproof Enclosure: 87 mm x 73 mm x 27 mm |
| Operating Environment | -20 °C to +80 °C 0 %RH to 100 %RH |
| Required Interface Package | IFC200 |
