MaT-Wind101A Vindhastigheds loggersystem inkl. anemometer, SW og kabel
Komplet vind-hastigheds logger m. vindmåler, software, vandtæt boks og kabel
3.550,00 DKK – 4.825,00 DKKInkl. moms
I restordre (Forventet leveringstid ca. 14 dage)
Fri fragt på ordrer
over 499 DKK
30 dages returret
40 års erfaring
Godkendt af fødevarestyrelsen
Smileyordning
Beskrivelse

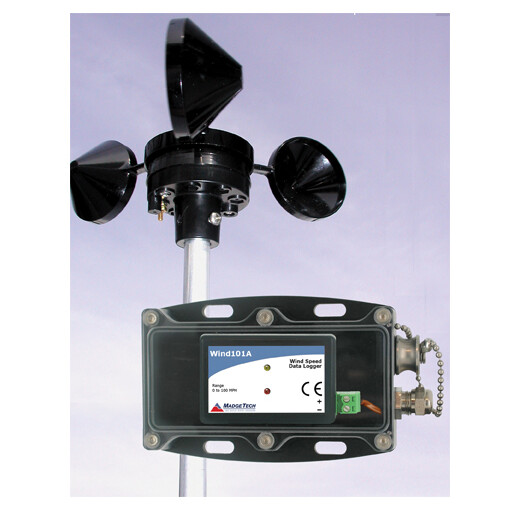

The Wind101A is a complete system to accurately measure and record wind speed.
This low cost wind speed recording system comes complete with the Pulse101A data logger weatherproof enclosure a three-cup anemometer PC software USB communicator and a selectable cabling to quickly get it up-and-running.
The Pulse101A data logger can measure and record data for up to 500000 readings and the storage medium is non-volatile solid state memory providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from a computer using the included user-friendly software.
The anemometer cable is available in 7,5m, 15m, 30m, and 45m
Tekniske specifikationer
WIND
GENERAL
| Gust Survival Speed | 214 mph (95 m/s) |
|---|---|
| Threshold Wind Speed | 1,75 mph (0,75 m/s) |
| Maximum Measurable Speed | 100 mph (contact factory about use at higher wind speeds) |
| Wind Resolution | 0,085 mph at a 10 second reading rate |
| Wind Accuracy | ±2 mph 0 to 10 mph ±2,5 % of reading 10 to 100 mph |
| Rotation Diameter | 7., in (191 mm) |
| Mount | Accepts 0,5 in (13 mm) dia. Mast |
| Memory | 500.000 readings; software configurable memory wrap 250.000 readings in multiple start/stop mode |
|---|---|
| Baud Rate | 115.200 |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate |
| Dimensions | Data Logger: 36 x 64 x 16 mm |
| Operating Environment | -20°C to 60°C 0%RH to 100%RH |
