901627-00, Data Logger with LCD display and input for TC temperature sensors

Temperatur datalogger med LCD Display. 1 intern og 1 ekstern kanal.

5.000,00 DKKInkl. moms

I restordre (Forventet leveringstid ca. 14 dage)

Tilgængelig på restordre

Har du brug for hjælp?

Ring til os på 7020 2848
eller send os en mail

Tilbud

Fri fragt på ordrer
over 599 DKK

30 dages returret

40 års erfaring

Godkendt af fødevarestyrelsen

Smileyordning

Beskrivelse

Temperaturdatalogger med LCD Display (1 kanal for Thermocouple Type J, K, T, E, R, S, B og N)

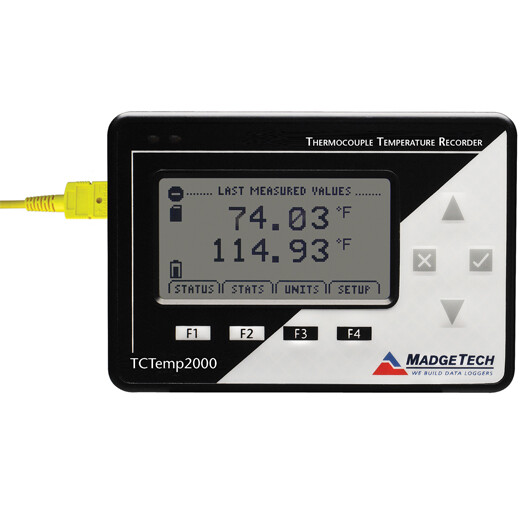

The TCTemp2000 is a thermocouple temperature data logger perfect for applications requiring instant remote readings of temperature. The 8-button keypad and large LCD provide convenient access to current data and data logger setup. This data logger has an internal temperature sensor and one external input for J, K, T, E, R, S, B and N type thermocouples.
Additionally memory and battery levels external power status sampling and recording status are shown on the LCD.

Available on-screen data includes: statistics (min max average) for both channels; recording status (start stop and recording rate); display options (channels shown units text size); and calibration information (date calibrated date for recalibration). Statistics can be cleared at any time during logging.

Yderligere info

Hent databladet her / Se user-guiden her

Tekniske specifikationer

TEMPERATURE

Internal Channel Temperature Sensor	Semiconductor
Internal Channel Temperature Range	-20 to 60°C
Internal Channel Temperature Resolution	0,1°
Internal Channel Temperature Calibrated Accuracy	±1,0°
Remote Channel Temperature Sensor	Thermocouple Types J, K, T, E, R, S, B, N

GENERAL

Memory	131071/channel
Reading Rate	1 reading every 2 seconds to 1 every 24 hours
Baud Rate	115.200
Cold Junction Compensation	Automatic based on internal channel
Battery Life	1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available.
Material	Black anodized aluminum
Dimensions	122 x 84 x 32 mm
Operating Environment	-20~60° 0~95%RH non-condensing
Required Interface Package	IFC200
Approvals	CE

Product Tables

Thermocouple	Range(°C)	Resolution	Accuracy
J	-210 to +760	0,1°C	±0,5°C
K	-260 to +1370	0,1°C	±0,5°C
T	-260 to +400	0,1°C	±0,5°C
E	-260 to +980	0,1°C	±0,5°C
R	-50 to +1760	0,5°C	±2°C
S	-50 to +1760	0,5°C	±2°C
B	+60 to +1820	0,5°C	±2°C
N	-260 to +1300	0,1°C	±0,5°C
