Beskrivelse

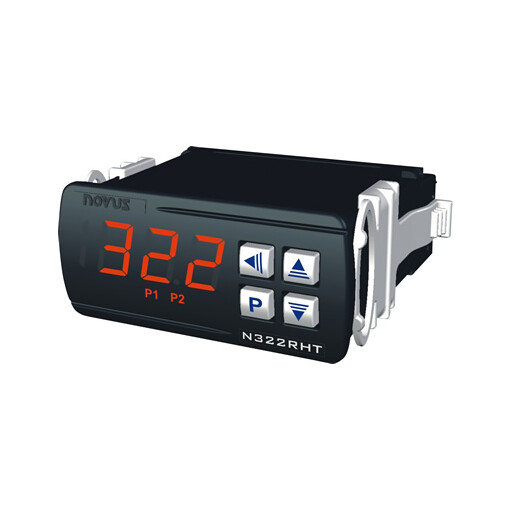

The 322RHT is a digital controller for relative humidity and temperature.
Its 2 relay outputs can be configured independently as control or alarm either for temperature or relative humidity.
The RHT probe (3 m length) is provided along with the instrument.
The features of a particular model (mains supply digital communication etc) are identified by the label placed on the thermostat body.

Indication of the selected variable or alternate

One SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) relay output

One SPST-NA: 3 A / 250 Vca relay output

Measuring range: -30 to +105°C

Accuracy for RH: 3% @ 25 °C

Measuring range: 0 to 100% of relative humidity (RH)Humidity
Measuring resolution: 1% over full range

Temperature
IP65 frontal protection

Adjustable hystereses

Yderligere info

Se databladet her

Tekniske specifikationer

Temperaturområde (extern sensor)	-30 °C til 105 °C
Fugt måleområde (evtern sensor)	0 til 100%
Spænding (standard model)	100 - 240 V AC / 50/60 Hz
Spænding (24V model)	12 til 30 Vdc / 24 Vac / - 10% +20%
Effektforbrug	5 VA maximum
Beskyttelses grad	IP65 front-panel IP42 bag-panel
Mål og vægt	75 x 33 x 75 mm 100 gram
Hul-mål (udskæring)	70 x 29 mm
Godkendelser	CE og UL

N322-RHT Temperature and Humidity Controller without sensor

Novus N322RHT controller med 2 stk. relæ-udgange
