5V RS485 Soil ECTemperature/Moisture probe for GS1 & GS1-S series (NOT GS1-1DS); Audio plug; Only GS1 after 2022/7/18
U-B_Soil-EC-Probe. For SP1, GS1 & GS1-S modellerne, (dog ikke GS1-1DS). Audio stik og 3m ledning
750,00 DKKInkl. moms
På lager
In stock (can be backordered)
Fri fragt på ordrer
over 599 DKK
30 dages returret
40 års erfaring
Godkendt af fødevarestyrelsen
Smileyordning
Beskrivelse

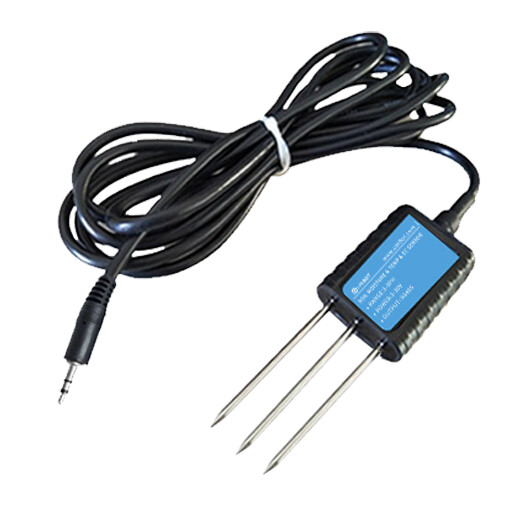

Soil EC & Temperature & Moisture Sensor
Combined soil moisture, conductivity and temperature in one sensor
- EC: Range: 0-20000us/cm; Resolution: 1us/cm; Accuracy: ±3%FS in
the range 0-10000us/cm, ±5%FS in the range 10000-20000us/cm - Moisture : Range: 0-100%; Resolution: 0.1%; Accuracy: ±2% within 0-50%,
±3% within 50-100% (brown soil, 60%, 25°C) - Temperature: Range: -40~80°C; Resolution: 0.1°C; Accuracy: ±0.5°C
Tekniske specifikationer
| Power Supply | 5-30V DC | |
| Maximum Power | 0.7W（24V DC supply） | |
| Working Temperature | -40℃~+60℃ | |
| Working Humidity | IP 68 | |
| Soil EC Measuring | Range | 0-20000us/cm |
| Resolution | 1us/cm | |
| Accuracy | (0-10000us/cm) ±3%FS; (10000-20000us/cm) ±5%FS; (Brown Soil, 60%, 25℃) | |
| Soil Moisture Measuring | Range | 0-100% |
| Resolution | 0.1% | |
| Accuracy | (0-50%) ±2%, @(Brown Soil, 30%, 25℃); (50-100%) ±3%, @(Brown Soil,60%,25℃) | |
| Soil Temperature Measuring | Range | -40~80℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0.5℃ | |
| Cable Length | 2 Meters | |
| Probe Size | 45*15*123mm | |
| Communication Methods | RS485 | |
| Device supporting | GS1-AETH1RS or GS1-AL4G1RS; Firmware V1.1.1 or above | |
