MicroCal-1 og 1 Plus Thermocouple multi-output temp. simulator, inkl. UKAS kalibreringscertifikat

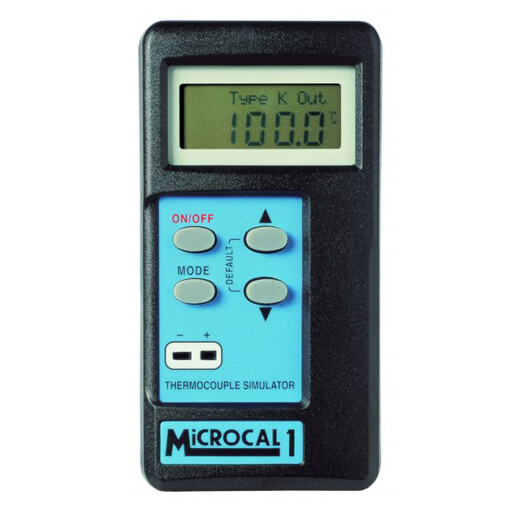

MicroCal 1 and Microcal 1 Plus Thermocouple Simulators

The MicroCal Thermocouple simulator helps ensure that the frequent checking of thermometer accuracies is a routine operation.

These instruments are designed to simulate a chosen temperature to test Thermocouple Type K, J, T, R, N, S and E thermometers without the need for specialised equipment or conversion tables.

The MicroCal 1 Plus calibrator also measures and simulates temperature.

The calibrator features a custom 10mm LCD display with alpha-numeric display line to prompt the user when changing parameters.
Selectable parameters include: °C/°F auto power off – enable/disable CJC – internal/external and display contrast adjustment.

An optional lead set is also available that comprises of seven leads, one for each Thermocouple Type K, J, T, R, N, S, and E.
Each PVC lead is one metre long and incorporates two miniature thermocouple plugs.

Each MicroCal is supplied with a one metre PVC type K thermocouple lead with miniature connectors and a five point UKAS Certificate of Calibration which indicates deviations from standards at the various points.

Thermocouple type K – range -200 to 1372°C
Thermocouple type J – range -200 to 1200°C
Thermocouple type T – range -270 to 400°C
Thermocouple type R – range 0 to 1768°C
Thermocouple type N – range -200 to 1300°C
Thermocouple type S – range 0 to 1768°C
Thermocouple type E – range -140 to 1000°C

 All thermocouple types are based on BS EN 60584-2:1993

OBS!
Da dette termometer leveres med et UKAS kalibreringscertifikat (som jo altid ønskes så nyt som muligt) skal det en tur igennem ETI’s akkrediterede kalibreringsafdeling (i England) før det kan leveres!
Dette termometer er derfor ikke en standart lagervare her hos LTM Instruments A/S!
Leveringstiden er alt i alt ca. 2 uger (7-10 arbejdsdage).
