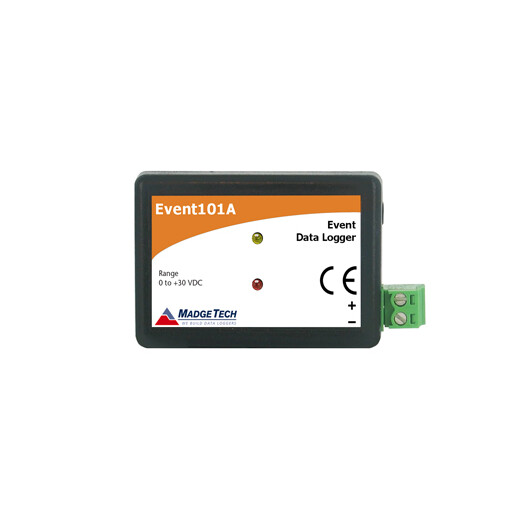

900103-00, 1 Channel Event Data Logger
Event / hændelses – datalogger, 10 års batteri kapacitet, inkl. NIST kalibreringscertifikat.
837,50 DKKInkl. moms
I restordre (Forventet leveringstid ca. 14 dage)
-
-
Inkl. moms
-
Inkl. moms
-
Inkl. moms
-
Inkl. moms
Tilgængelig på restordre
Fri fragt på ordrer
over 499 DKK
30 dages returret
40 års erfaring
Godkendt af fødevarestyrelsen
Smileyordning
Beskrivelse
Features
* 10 Year Battery Life
* 4Hz Reading Rate
* Multiple Start/Stop Function
* Ultra High Speed Download
* 406323 Events Storage Capacity
* Memory Wrap
* Battery Life Indicator
* Optional Password Protection
* Field Upgradeable
Benefits
* Simple Setup and Installation
* Minimal Long-Term Maintenance
* Long-Term Field Deployment
Applications
* Monitoring Gas Water or Electric Meters
* Rainfall Monitoring
* Contact Closure Monitoring
* Time Studies
* Traffic Studies
The Event101A is one of MadgeTech’s newest data loggers. It is part of a new series of low cost state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced low cost battery powered data loggers in the world today.
The Event101A offers a 10 year battery life 4Hz reading rate a multiple start/stop function ultra-high speed download capability 406.323 reading storage capacity optional memory wrap battery life indicator optional password protection and more. The Event101A is priced at $99 each and can be delivered from stock now.
Our research has shown that the Event101A is second to no other data logger when it comes to price and performance.
Using the MadgeTech Software starting stopping and downloading from the Event101A is simple and easy. Graphical tabular and summary data is provided for analysis and data can be viewed in multiple units using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The Event101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Tekniske specifikationer
Event
General
Memory | 465.578 readings |
Reading Rate | 4 Hz to 1 every 24 hours |
Baud Rate | 115.200 |
LED Indicators | Red and Green |
Battery Life | 10 years typical, dependent upon frequency and duty cycle |
Material | Polycarbonate |
Dimensions | 35 x 54 x 15 mm |
Operating Environment | -40°C to +80°C, 0%RH to 95%RH non-condensing |
Required Interface Package | IFC200 |
Approvals | CE |
Input Range | 0 to 30 V |
Input Low | <0,4 V |
Input High | >2,8 V |
Internal Weak Pull-up | <60 μA |
Input Impedance | 60000 Ω |
Minimum Input Active (Low) | 10 Microseconds |
