Beskrivelse

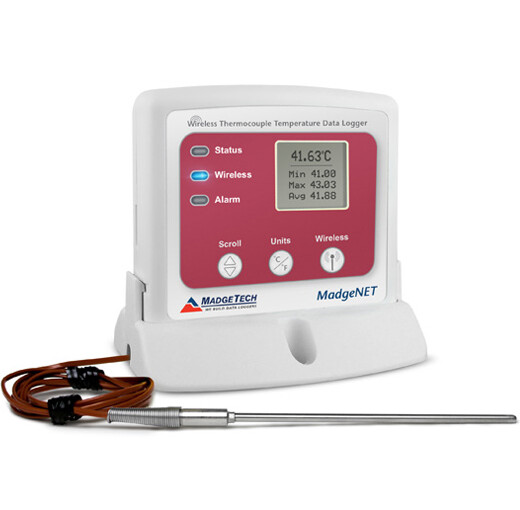

The RFTCTemp2000A is two-way Wireless thermocouple based temperature data logger with LCD. Transmits up to 2000 ft maximum (outdoors unobstructed). Built-in memory also stores data internally. Features a built-in temperature sensor for cold junction compensation (CJC). An external thermocouple probe is required (not included). Accepts J, K, T, E, R, S, B and N type thermocouples.
This device measures ambient temperatures as well as remote temperature via a thermocouple (sold separately) making it ideal for monitoring perishable goods vaccine storage chemicals and more. Starting stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver allowing customer to spend less time maintaining the data logger. Data can be provided in real time back to a central PC or the device may be downloaded at period intervals.
The convenient digital display provides the current reading for both channels. Minimum maximum and average statistics are also provided for a convenient snap shot of the logged data. For instant out of range notification an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm. Through the software email and text message alarms can also be sent. The RFTCTemp2000A also features programmable trigger settings for applications in which temperature logging is critical only above or below a certain temperature. This information may be programmed into the device and the data logger will only begin to log data to memory once the temperature limit has been exceeded.
The RFTCTemp2000A can be used as a single wireless data logging system yet can be expanded to a large scale system which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). The RFTCTemp2000A utilizes the new MadgeTech Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel® data annotation digital calibration and more.
Tekniske specifikationer
Temperature
Wireless
General
Memory | 16.128 readings |
Reading Rate | 1 reading every second up to 1 reading every 24 hours |
Baud Rate | 250.000 |
LED Indicators | Green, Blue & Red |
Battery Life | 3 years typical at a 1 minute reading rate |
Material | ABS plastic |
Dimensions | 76,2 x 88,9 x 24,1 mm - Data logger only |
IP Rating | IP22 |
Operating Environment | -20°C to 60°C, 0%RH to 95%RH non-condensing |
Required Interface Package | RFC1000 |
Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
External Temperature Sensor | Thermocouple types: J, K, T, E, R, S, B, N |
External Temperature Range | -210°C to 1300°C (Probe Dependent) |
External Temperature Resolution | 0,1°C (Probe Dependent) |
External Temperature Calibrated Accuracy | ±0,5°C (Probe Dependent) |
Internal Temperature Sensor | Internal Semiconductor |
RF Carrier Frequency | 2,45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
Output Power | +0 dBm typical |
Receiver Sensitivity | -95 dBm typical |
Typical outdoors Line of sight | Up to 2000 ft |
Typical Indoors line of sight | Up to 500 ft |
