902013-00, Intrisically safe Temperature and Humidity logger with stainless steel enclosure
RHTemp1000IS Fugt og
temperatur datalogger
3.812,50 DKKInkl. moms
I restordre (Forventet leveringstid ca. 14 dage)
Tilgængelig på restordre
Fri fragt på ordrer
over 499 DKK
30 dages returret
40 års erfaring
Godkendt af fødevarestyrelsen
Smileyordning
Beskrivelse

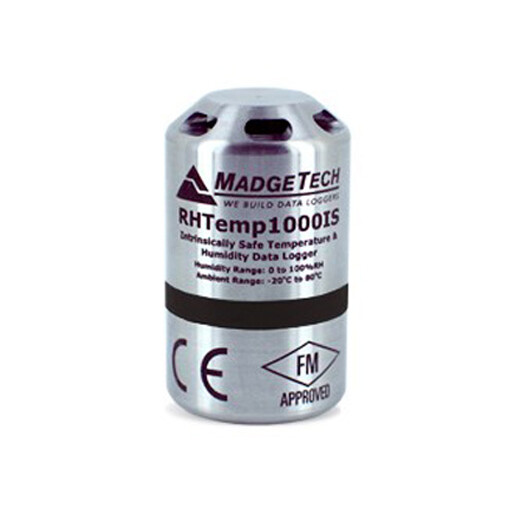

The new RHTemp1000IS is an Intrinsically Safe humidity and temperature data logger. The RHTemp1000IS is FM Approvals certified as Intrinsically Safe for Class 1 Division 1 groups A B C and D and non-incendive for Class 1 Division 2 groups A B C D and hazardous environments. This certification makes the device ideal for EtO Sterilization environmental studies and numerous other hostile environment applications.
One of the enhancements to the RHTemp1000IS is the stainless steel enclosure with engraved serial number and device name. The device interfaces with the IFC400 (sold separately) docking station and can be placed directly into the dock for full communications. No more removal of end-caps to download data! The small size of the RHTemp1000IS allows it to be placed in remote or hard to reach locations. The device now features a battery life indicator allowing users to easily identify low voltage and change batteries when required. This feature maximizes the use of your battery life and is a cost saving efficiency. The RHTemp1000IS can hold up 16350 humidity and temperature measurements. Its real time clock ensures that all the data is time and date stamped.
The MadgeTech Software is a powerful analytic tool available to download for free from our website www.madgetech.com. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis.
Features
- Software Battery Life Indicator
- Intrinsically Safe Certified
- 316 Stainless Steel Enclosure
- Small Sleek Design
- Fast Response Time
- Engraved Label
- NIST Traceable
- CE Compliant
Benefits
- Faster Downloads (1 min. full memory)
- Docking Station Communication
- Easily Identify Low Battery Voltage
Applications
- EtO Sterilization
- Environmental Studies
- Hostile Environment Monitoring
- Medical & Pharmaceutical
Tekniske specifikationer
General
Memory | 32,768 readings per channel |
Reading Rate | 1 reading every second up to 1 reading every 24 hours |
Battery Life | 2 years typical at 15 minute reading rate |
Material | 316 Stainless Steel/Radel |
Dimensions | 1.67 in x 0.97 in dia. (42.3 mm x 24.6 mm dia.) |
Key Ring End Cap | Key ring replaces standard bottom Thru-hole: 0.150" |
Operating Environment | -40 ºC to +80 ºC (-40 °F to +176 °F) 0 %RH to 100 %RH (case properly sealed) |
Required Interface Package | IFC400 or IFC406 |
Approvals | CE FM Class 3600, latest revision FM Class 3610, latest revision CAN/CSA-C22.2 No. 60079-0:15 CAN/CSA-C22.2 No. 60079-11:14 |
Temperature
Temperature Sensor | Resistance Temperature Detector (RTD) |
Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
Temperature Resolution | 0.01 ºC (0.02 ºF) |
Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C) ±0.9 °F (+32 °F to +122 °F) |
Humidity
Humidity Sensor | Capacitive Polymer |
Humidity Range | 0 %RH to 100 %RH (non-condensing) |
Humidity Resolution | 0.1 %RH |
Humidity Calibrated Accuracy | ±3 %RH maximum |
Humidity Specified Accuracy Range | 25 %RH to 75 %RH +20 °C to +40 °C Hysteresis Error 1 % Typical, 3% Maximum |
