Beskrivelse

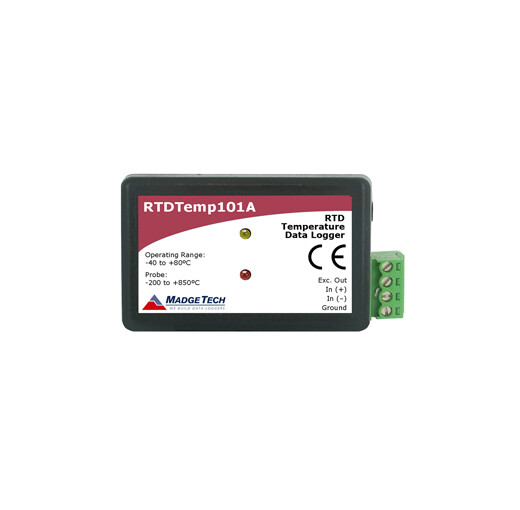

The RTDTemp101A is one of MadgeTech’s newest data loggers. It is part of a new series of low cost state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced low cost battery powered data loggers in the world today.
The RTDTemp101A offers a 10 year battery life a multiple start/stop function ultra-high speed download capability 670000 reading storage capacity optional memory wrap precision RTD sensing element battery life indicator optional password protection programmable high-low alarms and more.Our research has shown that the RTDTemp101A is second to no other data logger when it comes to price and performance.
Using the MadgeTech Software starting stopping and downloading from the RTDTemp101A is simple and easy. Graphical tabular and summary data is provided for analysis and data can be viewed in °C °F K or °R. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The RTDTemp101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
RTD probe sold separately.
Tekniske specifikationer
Temperature specifications:
GENERAL
| Temperature Sensor | External 100Ω RTD |
| Temperature Range | -200°C to +850°C |
| Temperature Resolution | 0,001°C |
| Temperature Calibrated Accuracy | ±0,05°C |
| Memory | 1340000 readings. 670000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second to 1 every 24 hours |
| Alarm | Yes |
| Baud Rate | 115200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 36 x 56 x 16 mm |
| Operating Environment | -40°C to +80°C, 0 to 95%RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
