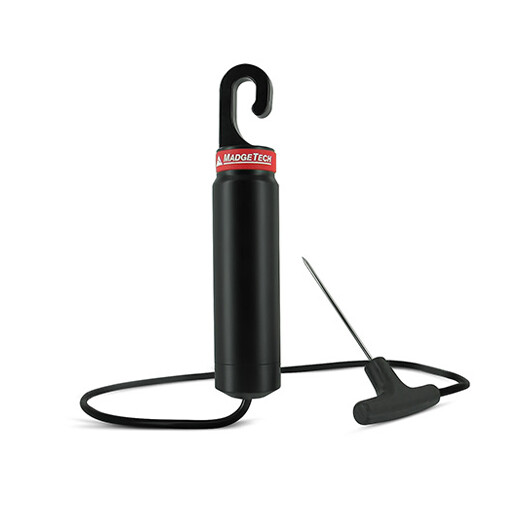

902144-00, Wireless Meat Temperature Data Logger with Two way Communication
Trådløs fødevare temperatur logger, med ekstern probe
4.575,00 DKKInkl. moms
I restordre (Forventet leveringstid ca. 14 dage)
-
-
Inkl. moms
-
Inkl. moms
Tilgængelig på restordre
Fri fragt på ordrer
over 499 DKK
30 dages returret
40 års erfaring
Godkendt af fødevarestyrelsen
Smileyordning
Beskrivelse
MadgeTech’s RFOT is the most advanced wireless temperature data logger in the meat industry today. MadgeTech has enhanced the RFOT wireless meat data logger with an extra durable rugged probe. The easy-grip handle is designed to be tough ergonomic and built to stand up to the harshest environments and thousands of cycles. Built out of a sturdy TECAFORM® material this enhancement makes for easy probe insertion and handling of the device simple and solid.
The RFOT is perfectly suited for smoke houses ovens and other cooking processes up to 100 °C as well as refrigerators and freezers down to -20 °C. It is completely splash proof and can withstand wash down cycles. This state-of-the-art device records and transmits internal product temperature readings back to a central computer for instant real-time monitoring.
The RFOT never needs to be connected to a computer as it has been designed for two way wireless communication. Full communication can be performed directly from a central PC. In addition to wirelessly transmitting data the RFOT also stores each reading to internal memory for backup. This backup data may be retrieved wirelessly at a later time.
MadgeTech’s easy to use software features user programmable critical control points called “cooling flags” to assist in compliance with USDA Appendix B. The “cooling flags” are automatically annotated on the graph and tabular data views. The summary tab provides the cool down duration between each critical control point. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The RFOT was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC. The RFOT is available with a 4 in rigid piercing probe or a 2.5 in rigid piercing probe (for smaller meat products).
Countries approved for use purchase and distribution of the RFOT:
Australia Austria Belgium Bulgaria Canada Chile Columbia Croatia Cyprus Czech Republic Denmark Ecuador Estonia Finland France Germany Greece Honduras Hungary Iceland Ireland Israel Latvia Liechtenstein Lithuania Luxembourg Malta Mexico New Zealand Norway Peru Poland Portugal Romania Saudi Arabia Slovakia Slovenia South Africa Spain Sweden Switzerland Thailand The Netherlands Turkey United Kingdom United States Venezuela Vietnam
Tekniske specifikationer
General
Memory | 21.504 readings |
Reading Rate | 1 reading every 2 seconds to 1 every 24 hours |
Baud Rate | 115.200 |
Battery Life | 2 years typical |
Material | Body: Radel R-5100 Cable Jacket: Silicone Polyurethane |
Dimensions | Body: Ø3,9 x 200 mm Hook ID: 1,6 mm Cable Length: 76,2 mm |
IP Rating | Splash proof (IP67) |
Operating Environment | -20 ºC to +100 ºC 0 %RH to 100 %RH non-condensing |
Required Interface Package | RFC1000 |
Approvals | CE, US (FCC), CA (IC) |
Temperature
Remote Channel Temperature Resolution | 0,01°C |
Remote Channel Temperature Calibrated Accuracy | ±0,1°C at -10°C to +100 °C ±0,5 °C (outside of that range) |
Probe Temperature Range | -50°C to +200°C |
Wireless
RF Carrier Frequency | 2,45 GHz IEEE 802.15.4 ultra-low power MadgeNET wireless transceiver with fully bi-directional communication |
Output Power | +0 dBm typical |
Receiver Sensitivity | -95 dBm typical |
Typical outdoors Line of sight | Up to 2000 ft |
Typical Indoors line of sight | Up to 500 ft |
