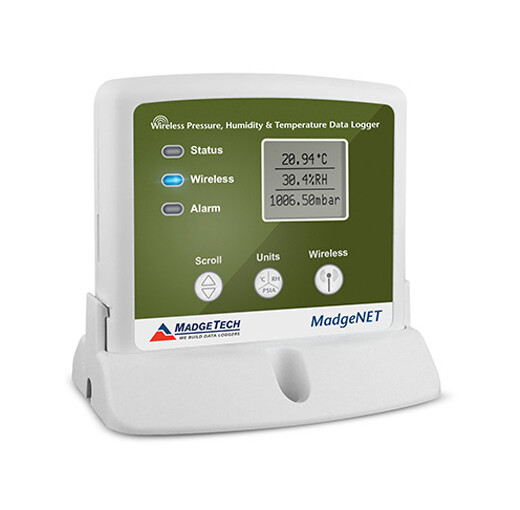

901415-00, Wireless Pressure, Humidity & Temp. data logger with LCD

The RFPRHTemp2000A is a wireless data logger that measures and records ambient pressure humidity and temperature. This dynamic data logger is ideal for monitoring weather data measuring barometric pressure in high-rise buildings or monitoring storage or warehouse environments that contain sensitive material. Clinical laboratories and clean rooms can utilize the RFPRHTemp2000A to measure and maintain critical pressure humidity or temperature levels all with one device.

The RFPRHTemp2000A features an LCD screen which provides instant access to the current reading minimum maximum and average statistics. Statistics can be reset directly on the keypad of the device allowing customers to keep track of statistics over certain time periods. This feature does not erase the data recorded and resets the statistics count. Other features include configurable alarms battery life indicator and wall or surface mounting options.

This data logger allows users to select the desired units in which the data is displayed. The RFPRHTemp2000A has a wide range of units available for each channel: °C °F °R K for the temperature channel %RH mg/mL Dew Point for the humidity channel and mbar PSI inHg mmHg atm Torr Pa m kPa MPa for the pressure channel. The unit is available for display on the LCD screen as well as in the software.

The RFPRHTemp2000A can be used as a standalone data logger or used with the RFC1000 wireless transceiver to transmit data back to a central PC. The RFPRHTemp2000A transmits up to 500 ft line of sight to the RFC1000 transceiver. Multiple RFC1000s can be used as repeaters and transmit up to 1000 ft line of sight to other RFC1000s. This allows the data to be sent over a greater distance.

As with all MadgeTech 2000A wireless data loggers the RFPRHTemp2000A can be used as a single wireless data logging system or can be expanded to a large scale system which can include hundreds of data loggers measuring different parameters such as temperature humidity and more (additional MadgeTech wireless data loggers and transceivers may be required). The RFPRHTemp2000A utilizes the latest MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel® data annotation digital calibration and more.
